Clicker press, Hand clicker
Cam-action hand clicker press · up to 5 tons · Made in Korea
Couldn't load pickup availability
Ships in 1–2 business days
Ships in 1–2 business days
We ship most orders within 1–2 business days by FedEx (or another express carrier, depending on destination). Import duties or taxes may apply.
1-year parts warranty
1-year parts warranty
Faulty parts are replaced free of charge within one year of purchase.
Why makers choose it
Clean cuts with your clicking dies
-
01

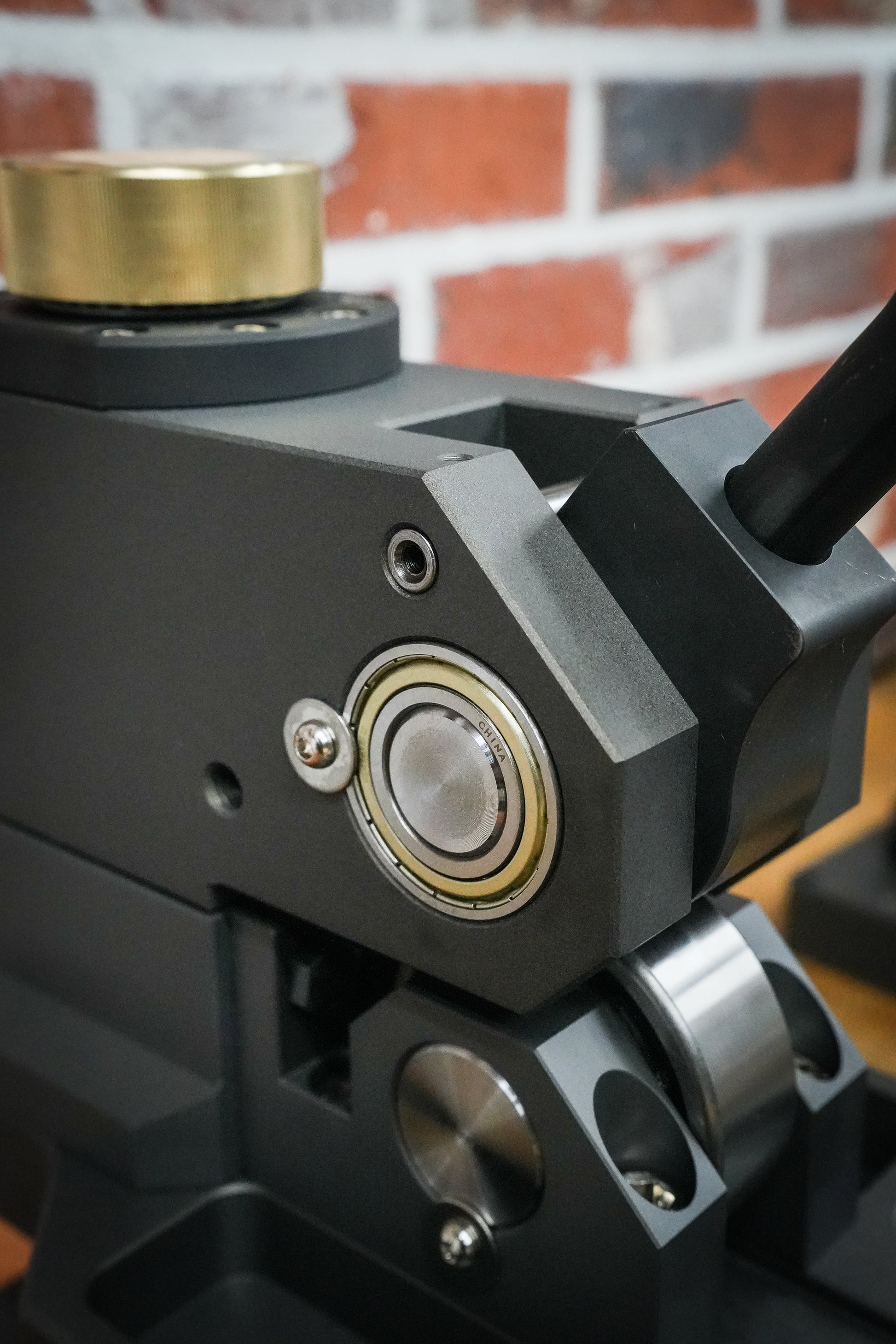

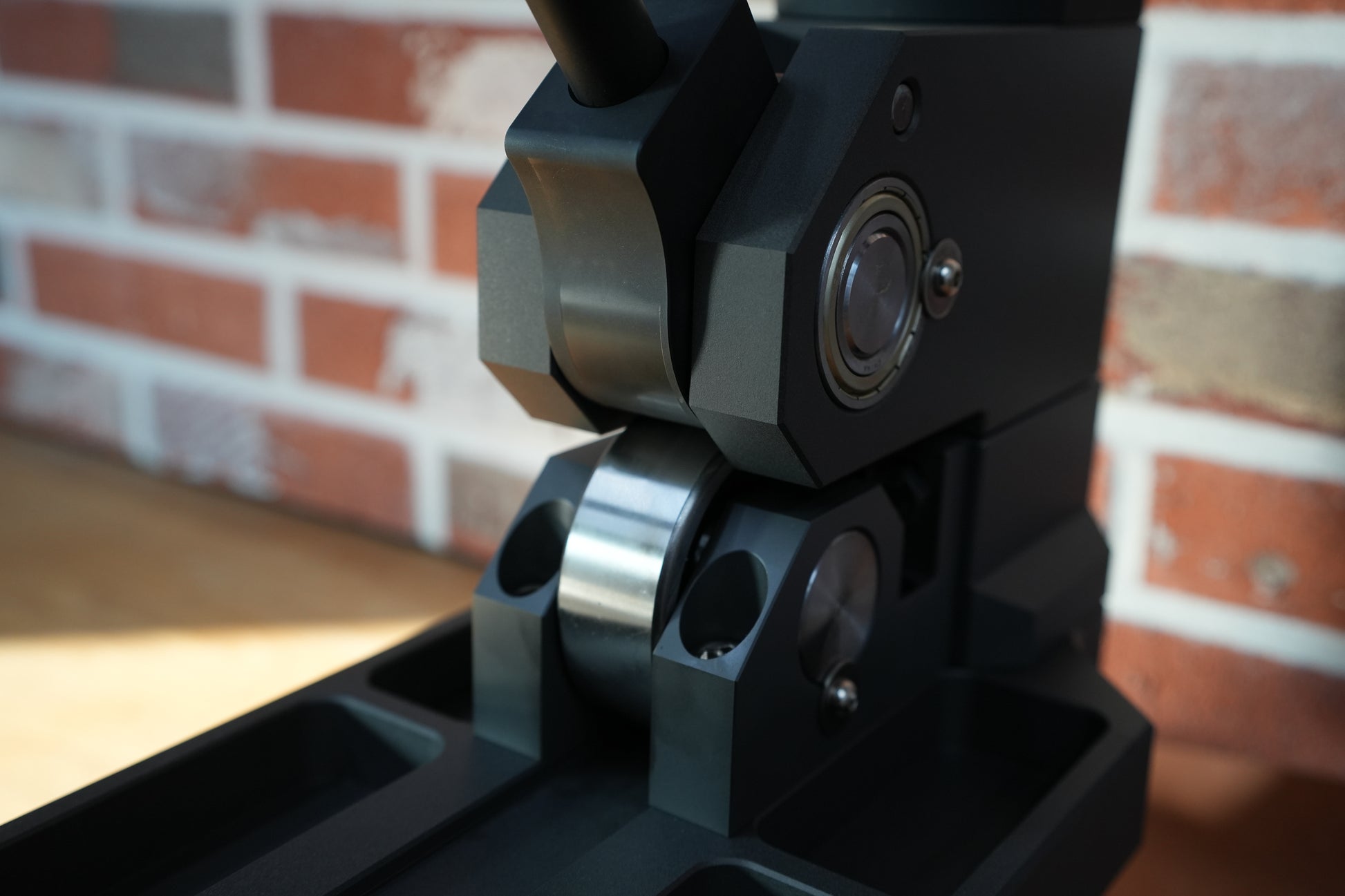

Cam action, up to 5 tons

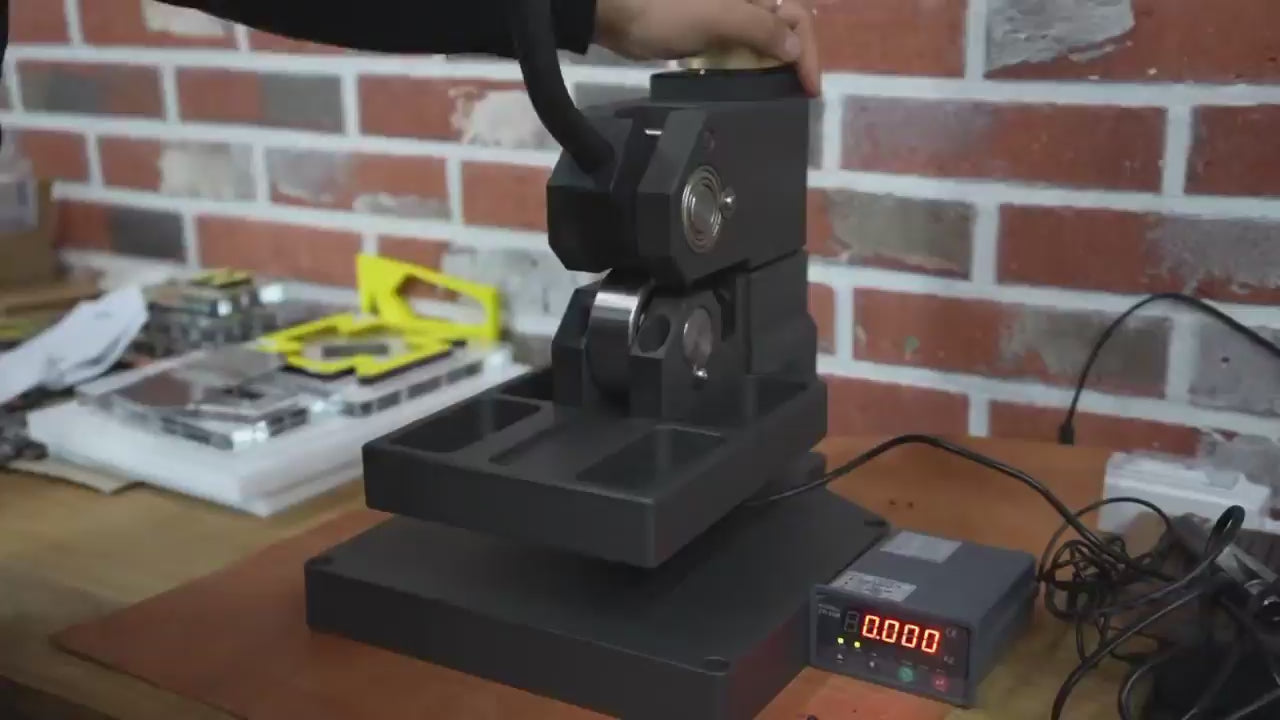

A cam mechanism generates up to about 5 tons of cutting pressure — measured with a load cell.
-
02

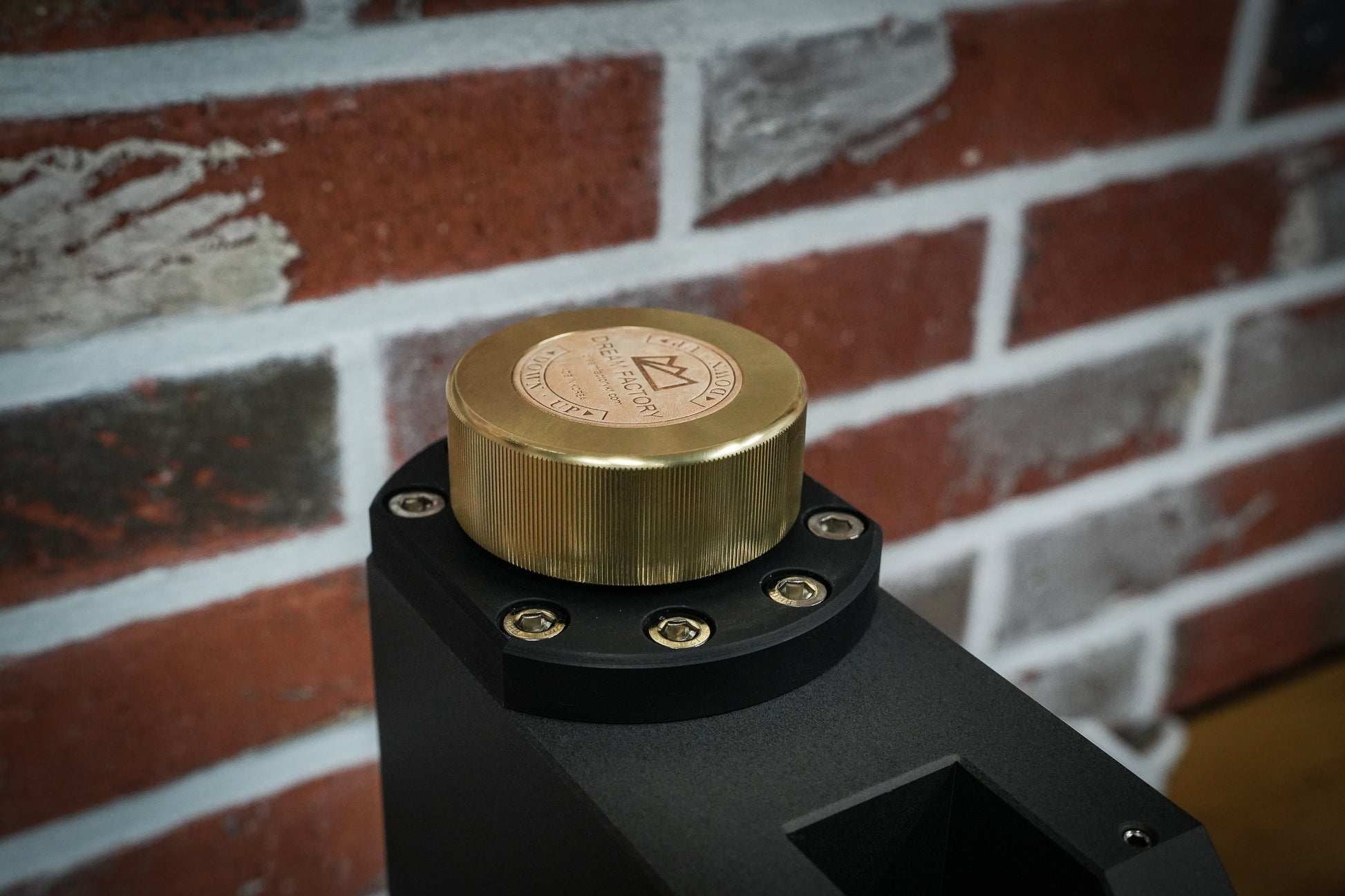

Height adjustment
Set the head height to your die (45–80 mm working range) so the force lands where it cuts — not too much, not too little.
-
03

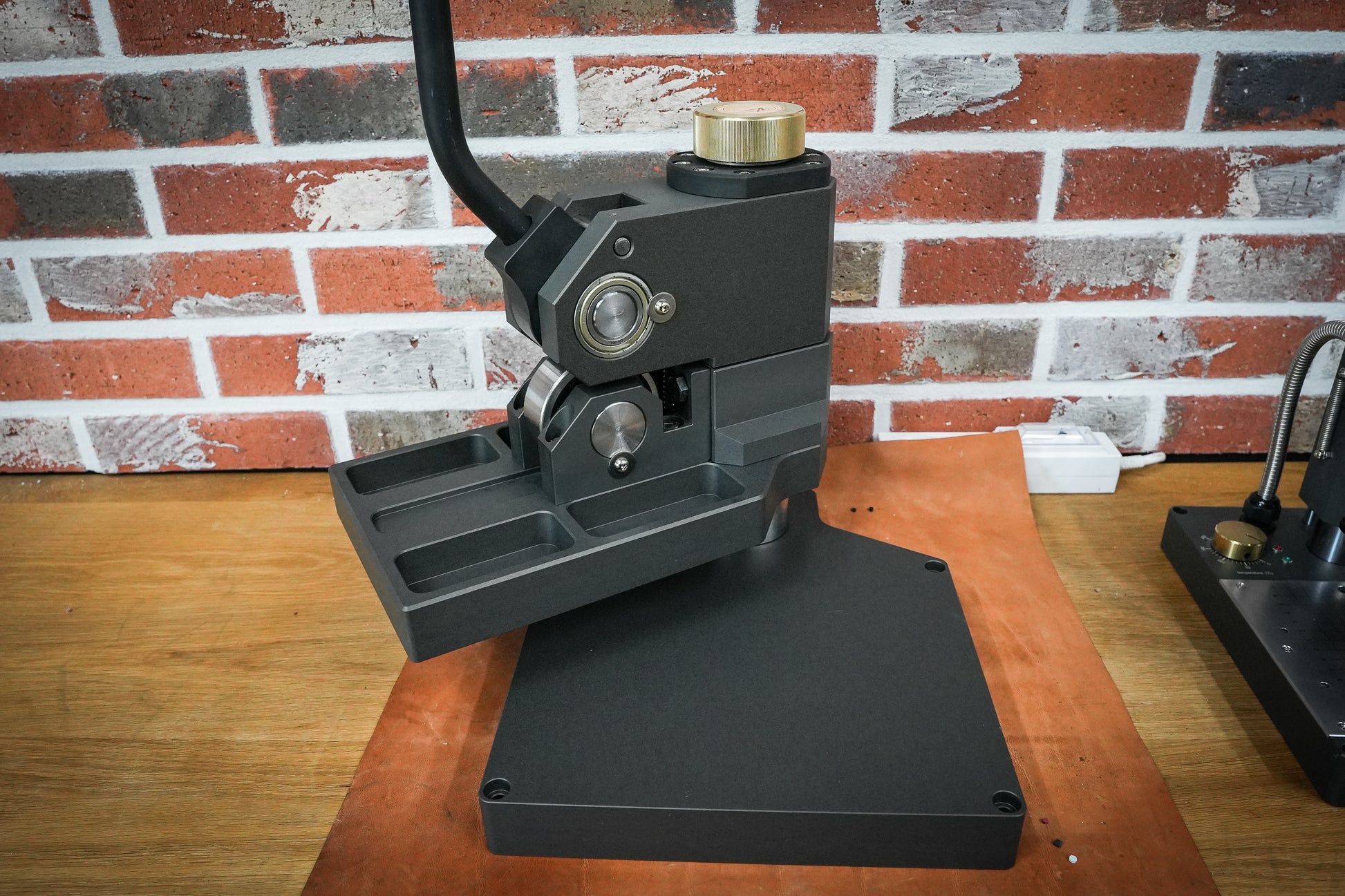

360° rotating head
The head rotates 360°, and you can move the material and cutting board to cut even large pieces.
-
04
Rigid, no grease
Hard-anodized aluminum keeps it light yet rigid, and it needs no grease or extra lubrication.
See it work
See it cut

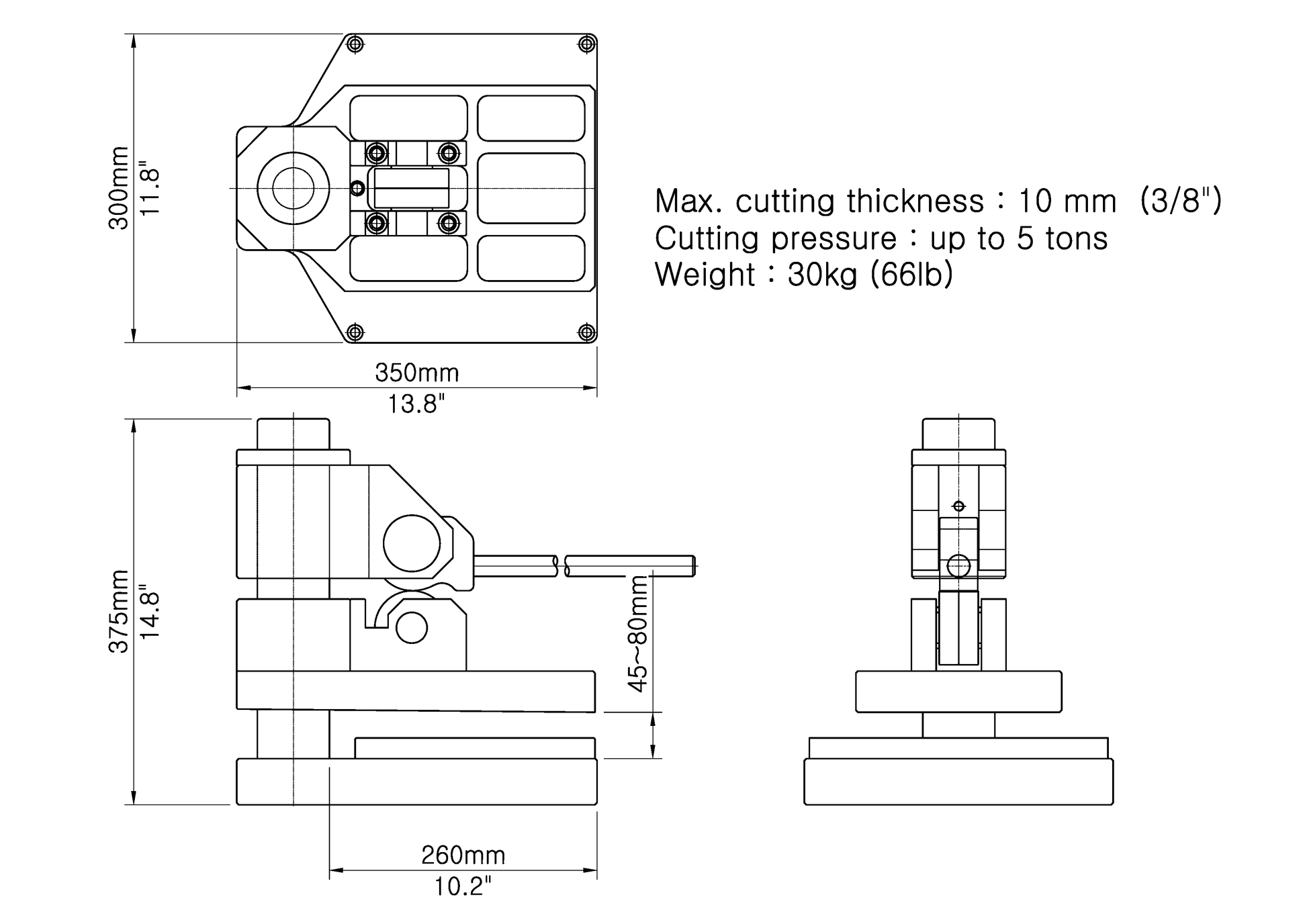

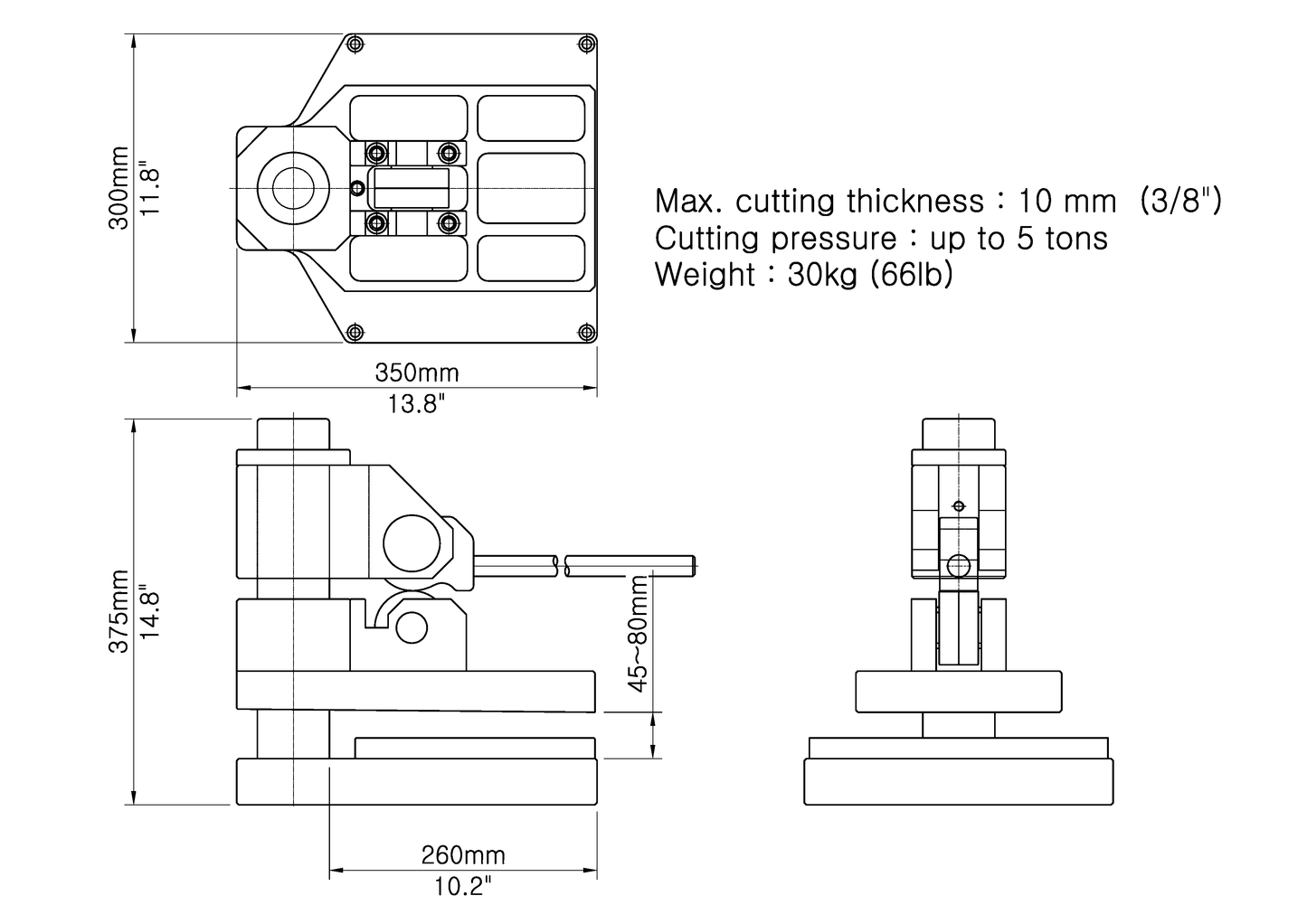

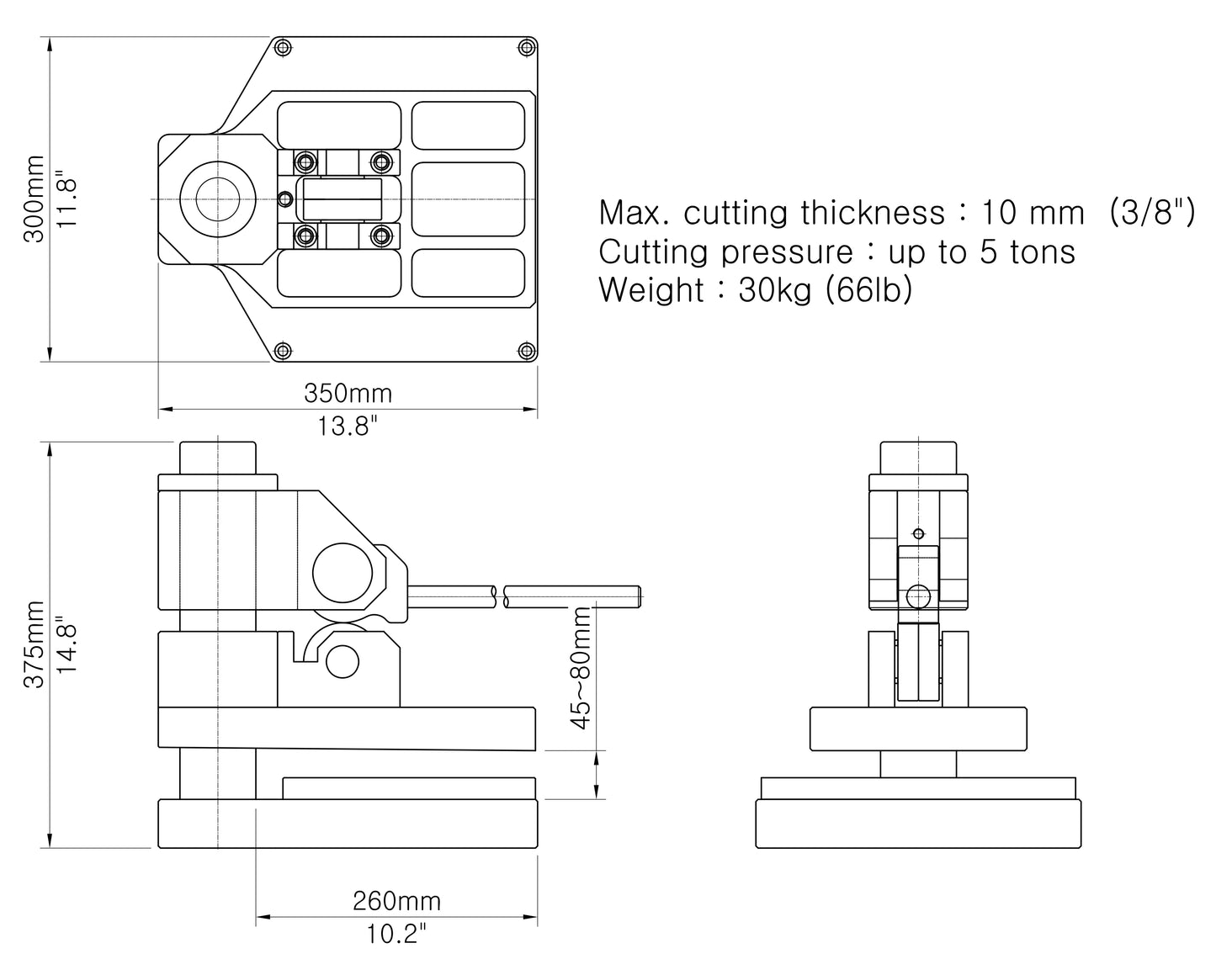

Specifications
| Mechanism | Cam, manual lever |
|---|---|
| Cutting pressure | Up to approx. 5 tons (measured with a load cell) |
| Max cutting thickness | 10 mm (3/8") |
| Cutting plate | 250 × 200 mm |
| Base | 350 × 300 mm |
| Height | 375 mm |
| Working height | 45–80 mm (adjustable) |
| Weight | 30 kg (66 lb) |
| Body | Hard-anodized aluminum |
| Head | 360° rotation |
| Lubrication | No grease needed |
What's in the box
- Hand Clicker Press main unit
- Handle

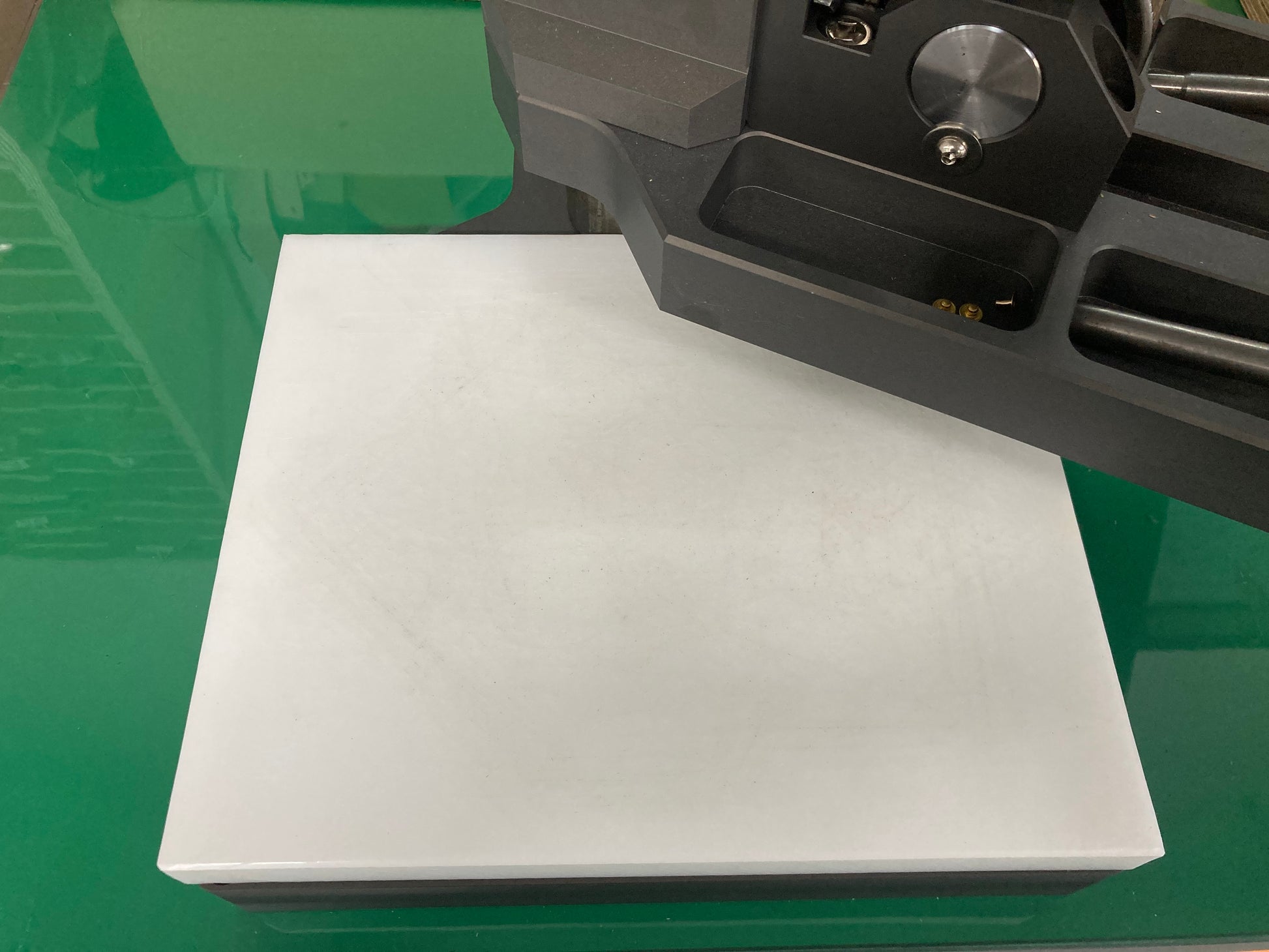

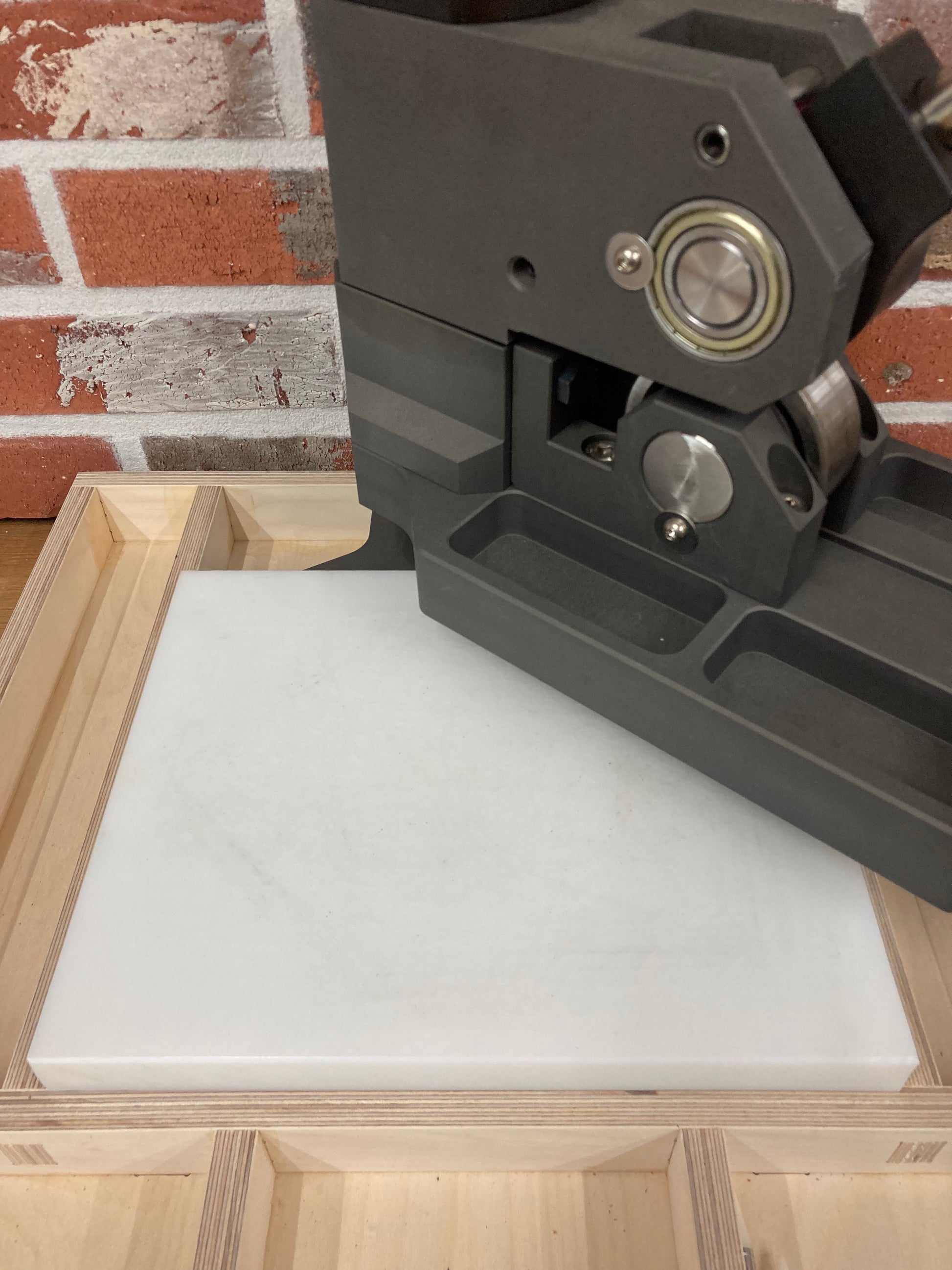

- Cutting board (PE)
Good to know
Clicking dies are not included. The press ships in two boxes and needs a simple assembly — instructions are in the included manual via QR code. Please read the operating instructions before use: correct height adjustment is critical.
FAQ
What can it cut?
Leather, using clicking (cutting) dies, up to 10 mm (3/8") thick. The 250 × 200 mm cutting plate and 360° head let you move the material and board to cut larger pieces.
How much force does it have?
Up to approximately 5 tons of cutting pressure, measured with a load cell. It is a manual press — the force comes from a cam mechanism.
Why does height adjustment matter?
If the height is set wrong, the press can apply too much force or fail to cut. Adjust it to your die (45–80 mm working range) and read the operating instructions before use.
Are cutting dies included?
No. The box contains the press main unit, the handle and a PE cutting board.
Does it need assembly?
Yes, a simple assembly. It ships in two boxes, and the instructions are available via the QR code in the included manual. Please take care for safety while assembling.
Does it need grease or maintenance oil?
No additional grease or lubrication is required.
How fast do you ship?
We aim to ship within 1–2 business days by FedEx (or another express carrier, depending on your location). Shipping costs are shown at checkout, and taxes may apply according to your country's rules.
Customs notes for the US and Mexico
US: orders over USD 2,500 need an EIN or SSN; if you have a FedEx account, please email your number. Mexico: please send your RFC number to dreamfactorytools@gmail.com before shipment.
What is the warranty?
Faulty parts are replaced free of charge within one year of purchase. After that, replacement parts are available for purchase.
